KYOTTO I/O Module Support
Ready-to-wire terminal modules for KYOTTO DIP solid state relays used in PLC I/O panels, control cabinets, and machine wiring.
Select by relay family, port count, and common input wiring. KB, KF, KM, and KN support 1 / 2 / 4 / 8-port module configurations.
Start with the load type and wiring requirement, then review the matching series for channel count, datasheets, and available models.
Use KB module assemblies for PLC output control of heaters, solenoids, and general AC loads where terminal wiring is preferred.
Use KF module assemblies for DC loads, PLC I/O interface wiring, and equipment signal outputs that need modular terminal wiring.
After the relay function is known, select the module by channel count, common input wiring, and available panel space.
For KM, KN, or non-standard module configurations, send the load, control signal, channel count, wiring need, and quantity for KYOTTO review.
Use this product line when the application needs the electrical function of a DIP SSR, but with screw terminals, common input wiring, and a module structure for control cabinet installation.
KB DIP solid state relays can be assembled onto I/O terminal modules for direct panel wiring.
KF DIP solid state relays can be used as module-ready outputs where screw-terminal wiring is required.
KM DIP solid state relays are also available for I/O module construction when the application needs direct terminal wiring.
KN DIP solid state relays can be supplied as I/O module assemblies for customers who need field terminals instead of board-level mounting.
The module is not a separate relay technology. It is the module-ready version of an existing DIP SSR family, made easier for wiring and installation.
The switching function comes from the KYOTTO KB, KF, KM, or KN DIP SSR series, so selection can start from the existing relay specification.
The I/O module adds terminal blocks and a carrier structure, reducing soldering and custom adapter board work.
Customers can mount and wire the module more easily in PLC I/O panels, machine cabinets, and field service applications.
This table helps customers understand which DIP relay family can be built into an I/O module. The exact part number is selected by relay rating, channel count, and wiring type.
| I/O-Capable Series | Built-in Relay Family | Branches | Module Structure | Typical Use |
|---|---|---|---|---|

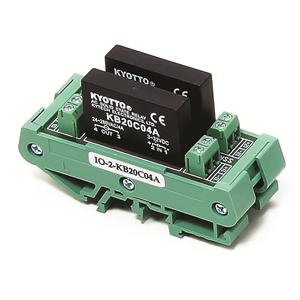

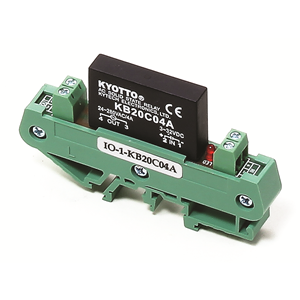

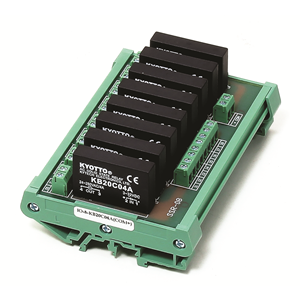

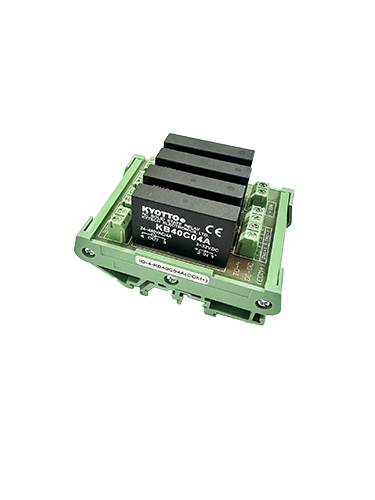

| IO-KB Series | KB Series | KB20 / KB20_AX / KB40 / KB40_AX | Common input wiring with 1 / 2 / 4 / 8-port module configurations by model. | PLC output interface, compact control panels, heating and automation wiring. |

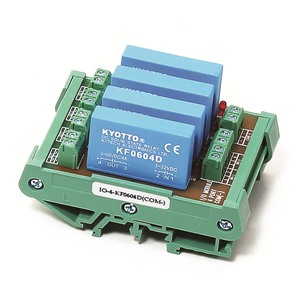

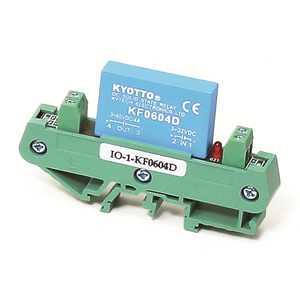

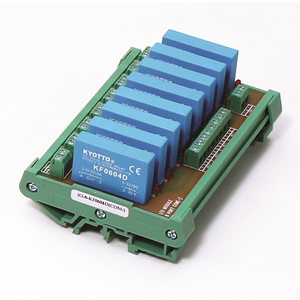

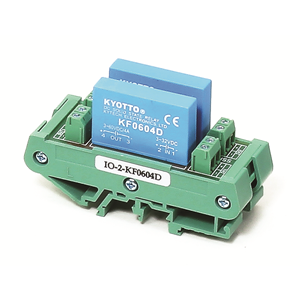

| IO-KF Series | KF Series | KF06 / KF06_DX / KF20 / KF20_DX | Common input wiring with 1 / 2 / 4 / 8-port module configurations by model. | PLC I/O interface, DC load switching, equipment signal output, cabinet wiring. |
| IO-KM Series | KM Series | Project-based | Common input wiring with 1 / 2 / 4 / 8-port module configurations by model. | Machine I/O expansion, maintenance-friendly wiring, compact relay interface modules. |
| IO-KN Series | KN Series | Project-based | Common input wiring with 1 / 2 / 4 / 8-port module configurations by model. | Control cabinet wiring, PLC output modules, factory automation service replacement. |
Send the relay family, channel count, load type, control signal, wiring requirement, and quantity. KYOTTO can help confirm the suitable I/O module and matching SSR series.
