Home  »  Solid State Relay  »  KG1005D

KYOTTO SSR Product

KG1005D Solid State Relay

Series KG - Engineering view with specifications, dimensional drawings, and product documents.

Series KG Single Phase DC Load 5A BJT
KG1005D

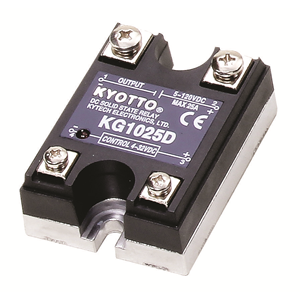

Product View Series product image Front Dimensions Outline drawing Side Dimensions Profile drawing

Product Specifications

  • Part NumberKG1005D
  • Control TypeDC
  • Control Voltage4-32VDC
  • Load TypeDC
  • Load Voltage5-120VDC
  • Max Load Current5A
  • Switching TypeBJT
  • PhaseSingle Phase
Datasheet Ask KYOTTO
Back to Series

Model Confirmation Workflow

Before purchasing or replacing a model, confirm load conditions, control signal, thermal requirements, and document version.

KG1005D
Load condition Check load type, load voltage, and maximum load current against the equipment requirement.
Control signal Confirm control voltage, control type, and switching method for the control circuit.
Thermal setup Review heatsink, fan, and safety cover needs by current, ambient temperature, and duty cycle.
Document version Download the datasheet to confirm electrical data, dimensions, and terminal layout before inquiry.
Download Datasheet Ask With This Model Back to Series Selection

Application Notes

  • Use this model for DC load switching applications.
  • Confirm load voltage, control voltage, and current rating before selection.
  • BJT operation supports stable panel and machine control design.

Ordering Checkpoints

  • Provide part number, quantity, load condition, and control signal when sending an inquiry.
  • For replacement use, compare terminal layout and dimensions with the drawing.
  • Contact KYOTTO if the application requires special review or equivalent model selection.

Documents & Support

Download the datasheet for detailed electrical information. If your project requires wiring confirmation, load review, or model selection, send the application details to KYOTTO.
