KH104 Series

Heatsink - Engineering Overview (all models on one page)
6 Models Heatsink • KYOTTO
KH104
Main

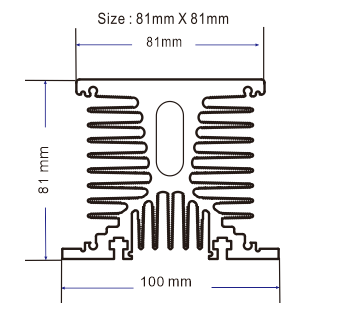

Structure
KH104 structure
Heatsink for SSR
Size Range:
100x104x81 ~ 100x200x81 mm
Suitable SSR Current:
25A – 125A
Series Datasheet
Download PDF ↗
KH104 Series 6 Models • 25A – 125A
Datasheet ↗
Model Size (mm) Compatible SSR
KH104-104 100x104x81
Suitable SSR: 25A,40A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH104-120 100x120x81
Suitable SSR: 50A,75A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH104-150 100x150x81
Suitable SSR: 90A,100A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH104-150(W) 100x150x81
Suitable SSR: 90A,100A
K3P(100A~125A)K3P-2L(100A~125A)
KH104-200 100x200x81
Suitable SSR: 125A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH104-200(W) 100x200x81
Suitable SSR: 125A
K3P(100A~125A)K3P-2L(100A~125A)
