KH110 Series

Heatsink - Engineering Overview (all models on one page)
4 Models Heatsink • KYOTTO
KH110
Main

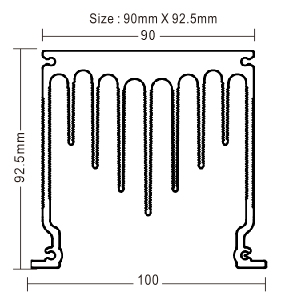

Structure
KH110 structure
Heatsink for SSR
Size Range:
100x100x92.5 ~ 100x200x92.5 mm
Suitable SSR Current:
75A – 125A
KH110 Series 4 Models • 75A – 125A
Model Size (mm) Compatible SSR
KH110-100 100x100x92.5
Suitable SSR: 75A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH110-150 100x150x92.5
Suitable SSR: 90A,100A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH110-200 100x200x92.5
Suitable SSR: 125A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH110-200(W) 100x200x92.5
Suitable SSR: 125A
K3P(100A~125A)K3P-2L(100A~125A)
