KH120 Series

Heatsink - Engineering Overview (all models on one page)
5 Models Heatsink • KYOTTO
KH120
Main

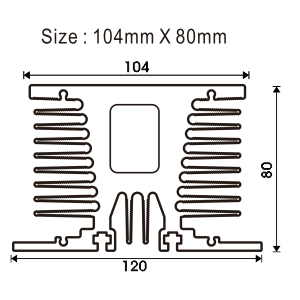

Structure
KH120 structure
Heatsink for SSR
Size Range:
120x80x80 ~ 120x150x80 mm
Suitable SSR Current:
25A – 125A
KH120 Series 5 Models • 25A – 125A
Model Size (mm) Compatible SSR
KH120-80 120x80x80
Suitable SSR: 25A,40A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH120-100 120x100x80
Suitable SSR: 50A,75A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH120-120 120x120x80
Suitable SSR: 90A,100A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH120-150 120x150x80
Suitable SSR: 125A
K3P(25A~90A)K3P-2L(25A~90A)K2R
KH120-150(W) 120x150x80
Suitable SSR: 125A
K3P(100A~125A)K3P-2L(100A~125A)
