K2R Series

Three-phase SSR solution for motor forward / reverse control applications.
12 Models Industrial Grade • SSR
K2R

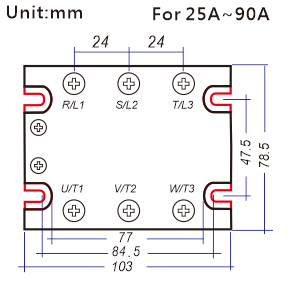

K2R image 2

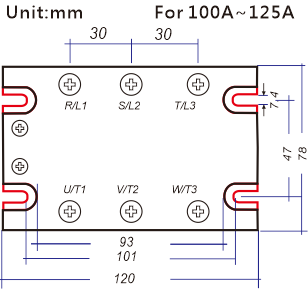

K2R image 3
SSR Engineering Summary
Control Voltage Groups: – 10-50VDC– 80-280VAC
Load Voltage Groups: – 48-480VAC
Current Range: 1HP (0.75kW) – 7.5HP (5.5kW)
Application: 3-Phase Motor Forward / Reverse Control

K2R Series Selection Check

Narrow the range by load voltage and current, then confirm control voltage, switching type, and document version.

12 models
Load condition Confirm AC / DC, single-phase / three-phase, load voltage, and maximum load current.
Control signal Match control voltage, control type, and zero-cross, random, or phase-control operation.
Thermal & accessories Review heatsink, fan, and safety cover needs by current, ambient temperature, and mounting style.
Document check Download the datasheet or send application details for KYOTTO model confirmation.
View Documents Confirm With KYOTTO Back to SSR Selection

Engineering Check Before Order

The series page defines the model range. Before purchasing, review thermal design, accessories, document version, and application conditions.

Model selector Use load voltage, control voltage, current, and switching type to narrow the model list. Open Selector
Heatsink review Select heatsinks by SSR current, ambient temperature, and cabinet space. View Heatsinks
Accessory check Confirm safety covers, DIN rail clips, and cooling fans before ordering. View Accessories

Load — 48-480VAC

Part Number Phase Function Control Type Control Voltage Load Type Load Voltage Load Current Switching Docs
Zero Cross 12 Models
Control Type — AC 6
K2R480C1AA
Three Phase Reversing AC 80-280VAC AC 48-480VAC 1HP(0.75kW) Zero Cross Data
K2R480C2AA
Three Phase Reversing AC 80-280VAC AC 48-480VAC 2HP(1.5kW) Zero Cross Data
K2R480C3AA
Three Phase Reversing AC 80-280VAC AC 48-480VAC 3HP(2.2kW) Zero Cross Data
K2R480C4AA
Three Phase Reversing AC 80-280VAC AC 48-480VAC 4HP(3.0kW) Zero Cross Data
K2R480C5AA
Three Phase Reversing AC 80-280VAC AC 48-480VAC 5HP(4.0kW) Zero Cross Data
K2R480C7AA
Three Phase Reversing AC 80-280VAC AC 48-480VAC 7.5HP(5.5kW) Zero Cross Data
Control Type — DC 6
K2R480C1DA
Three Phase Reversing DC 10-50VDC AC 48-480VAC 1HP(0.75kW) Zero Cross Data
K2R480C2DA
Three Phase Reversing DC 10-50VDC AC 48-480VAC 2HP(1.5kW) Zero Cross Data
K2R480C3DA
Three Phase Reversing DC 10-50VDC AC 48-480VAC 3HP(2.2kW) Zero Cross Data
K2R480C4DA
Three Phase Reversing DC 10-50VDC AC 48-480VAC 4HP(3.0kW) Zero Cross Data
K2R480C5DA
Three Phase Reversing DC 10-50VDC AC 48-480VAC 5HP(4.0kW) Zero Cross Data
K2R480C7DA
Three Phase Reversing DC 10-50VDC AC 48-480VAC 7.5HP(5.5kW) Zero Cross Data
